Flasks for Sand Casting

Description

Steel flasks for sand casting

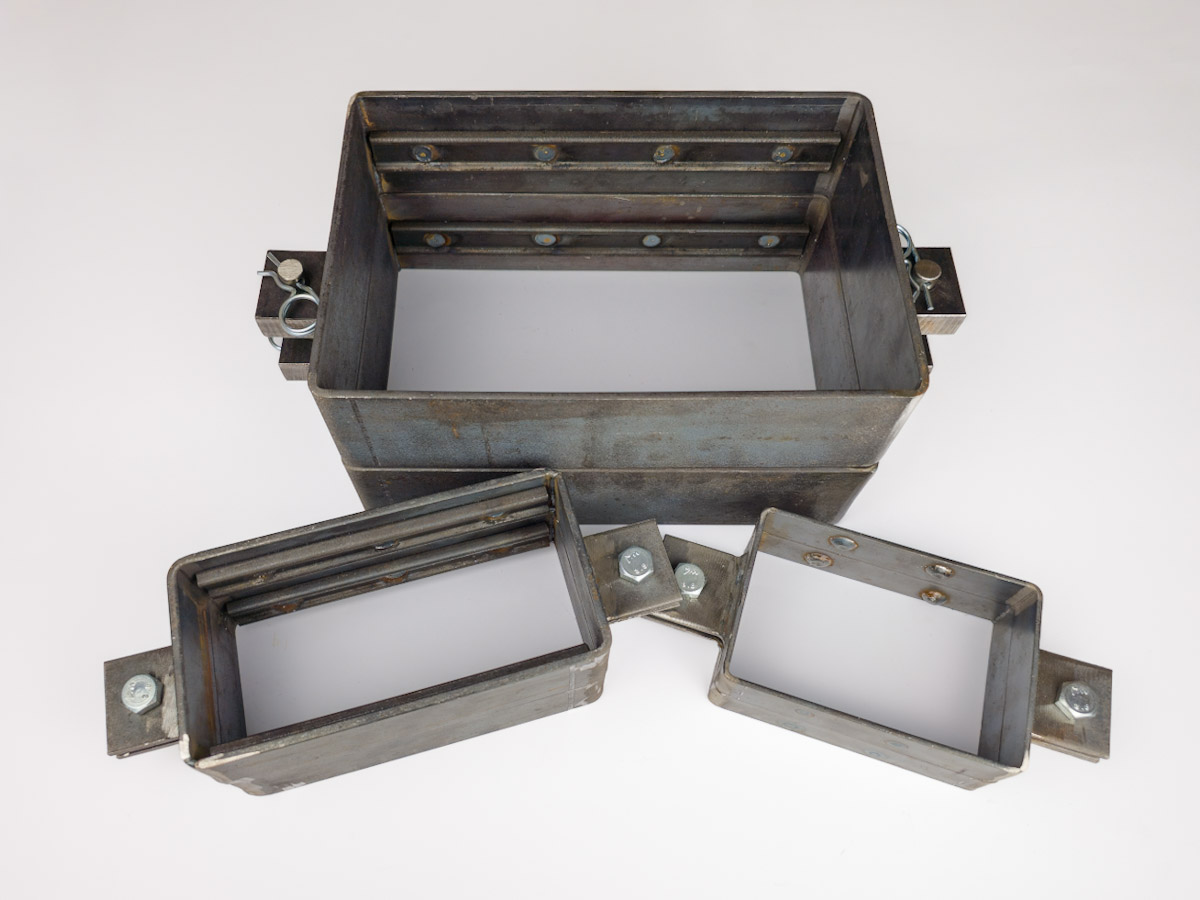

• Steel flasks for sand casting in various sizes
• Robust and durable
• Precisely alignable with steel pins
• Ribs or weld points for optimal sand retention in the flask
• Free Guide: Sand Casting for Download
• Made in Germany

The flasks are made from robust 3-5 mm steel profiles. They are ideal for creating two-part sand molds. Thanks to the sturdy steel pins or screws, the flask always remains firmly in the correct position.

The flasks are available in the following dimensions:

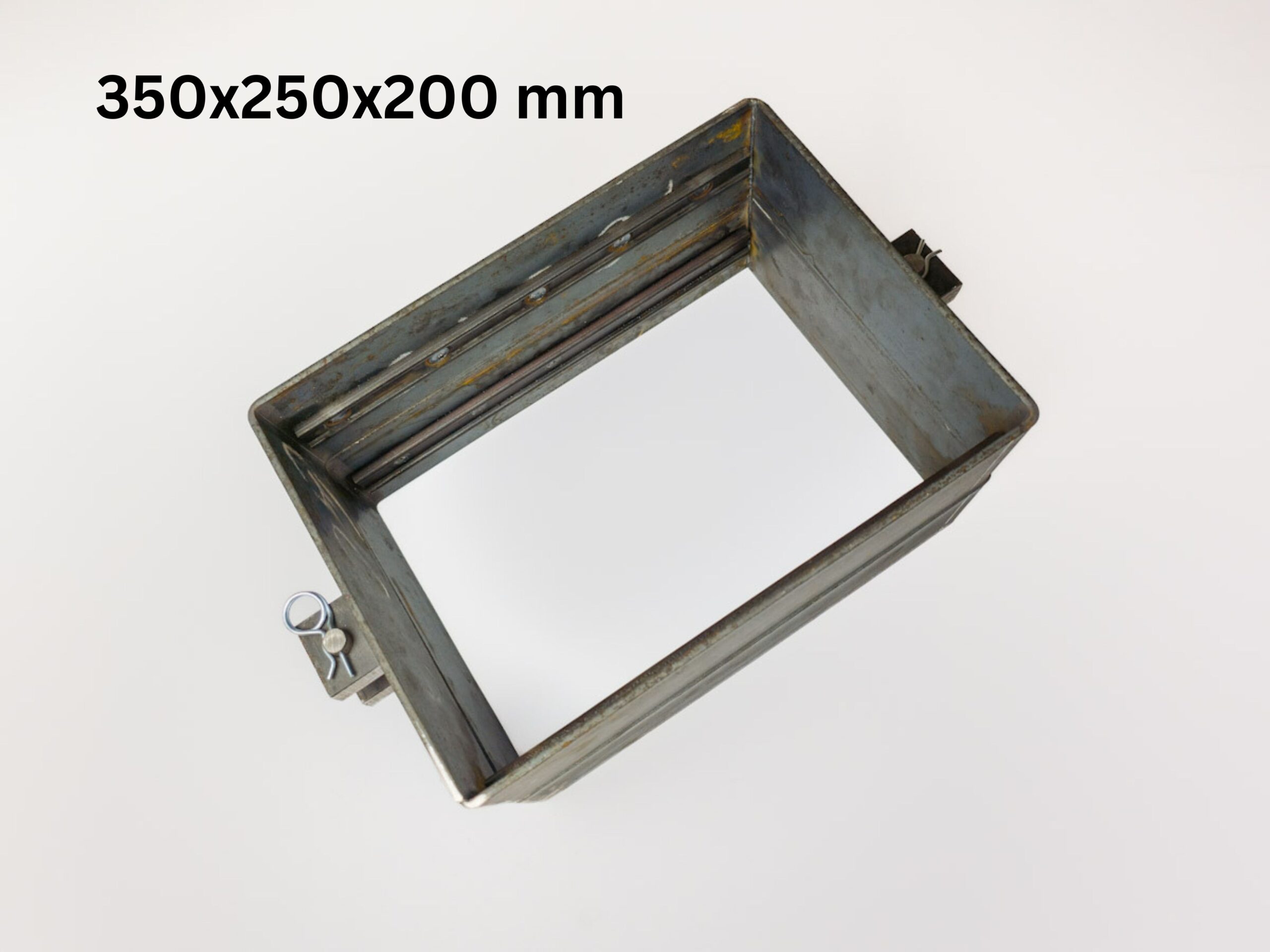

350x250x200 mm, approx. 12.8 kg
300x200x160 mm, approx. 9.2 kg

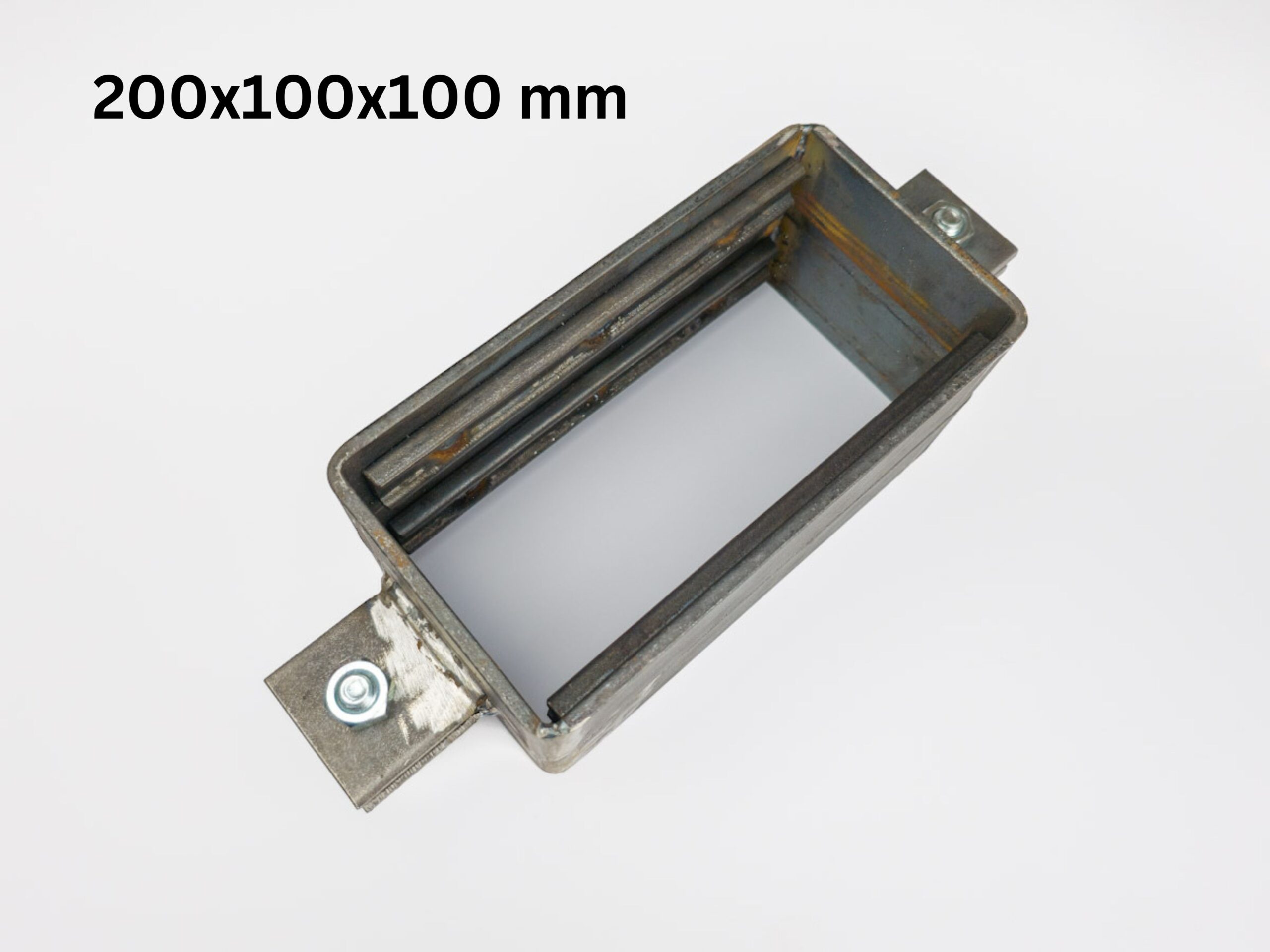

200x100x100 mm, approx. 3.7 kg

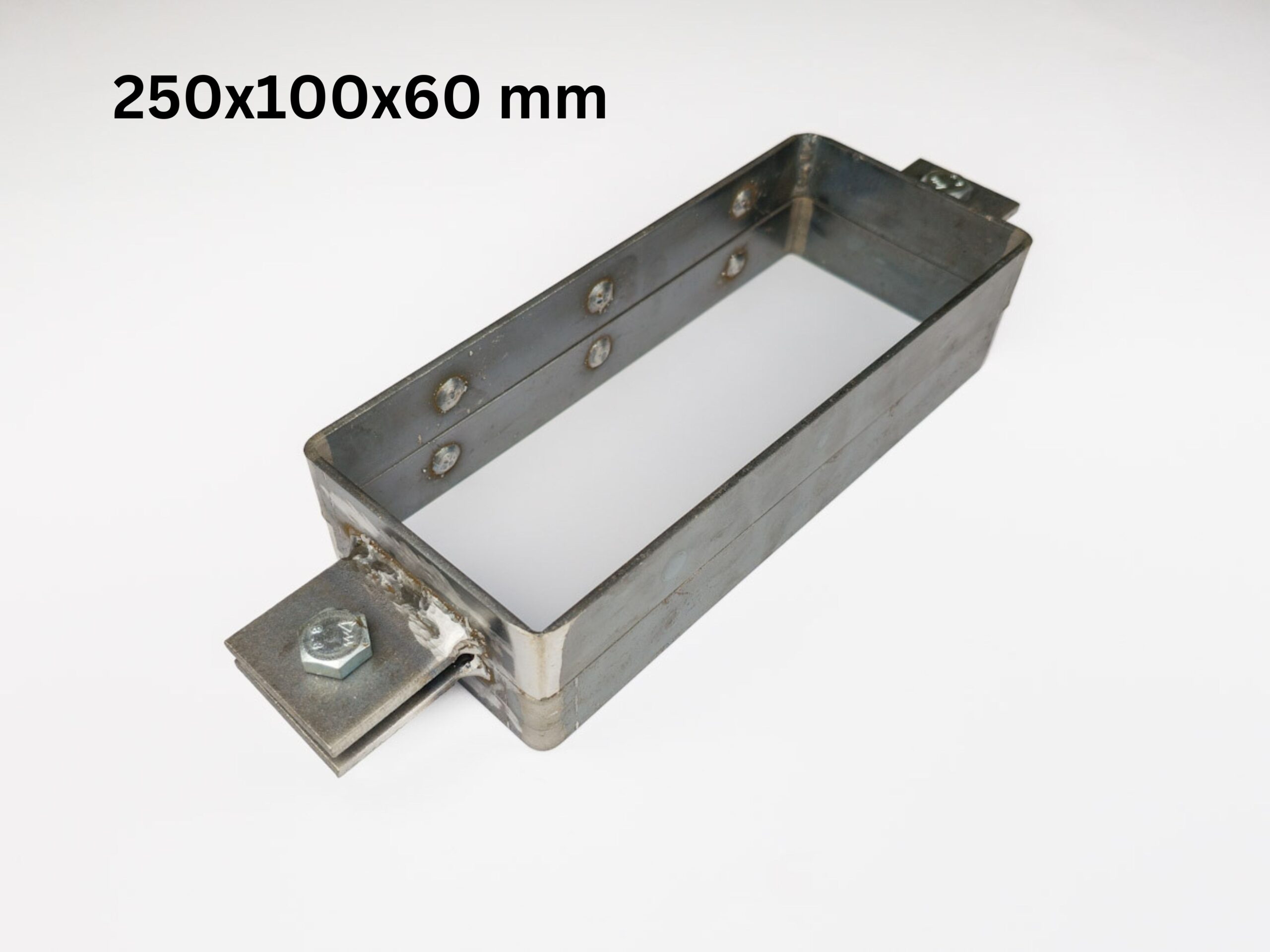

250x100x60 mm, approx. 1.6 kg

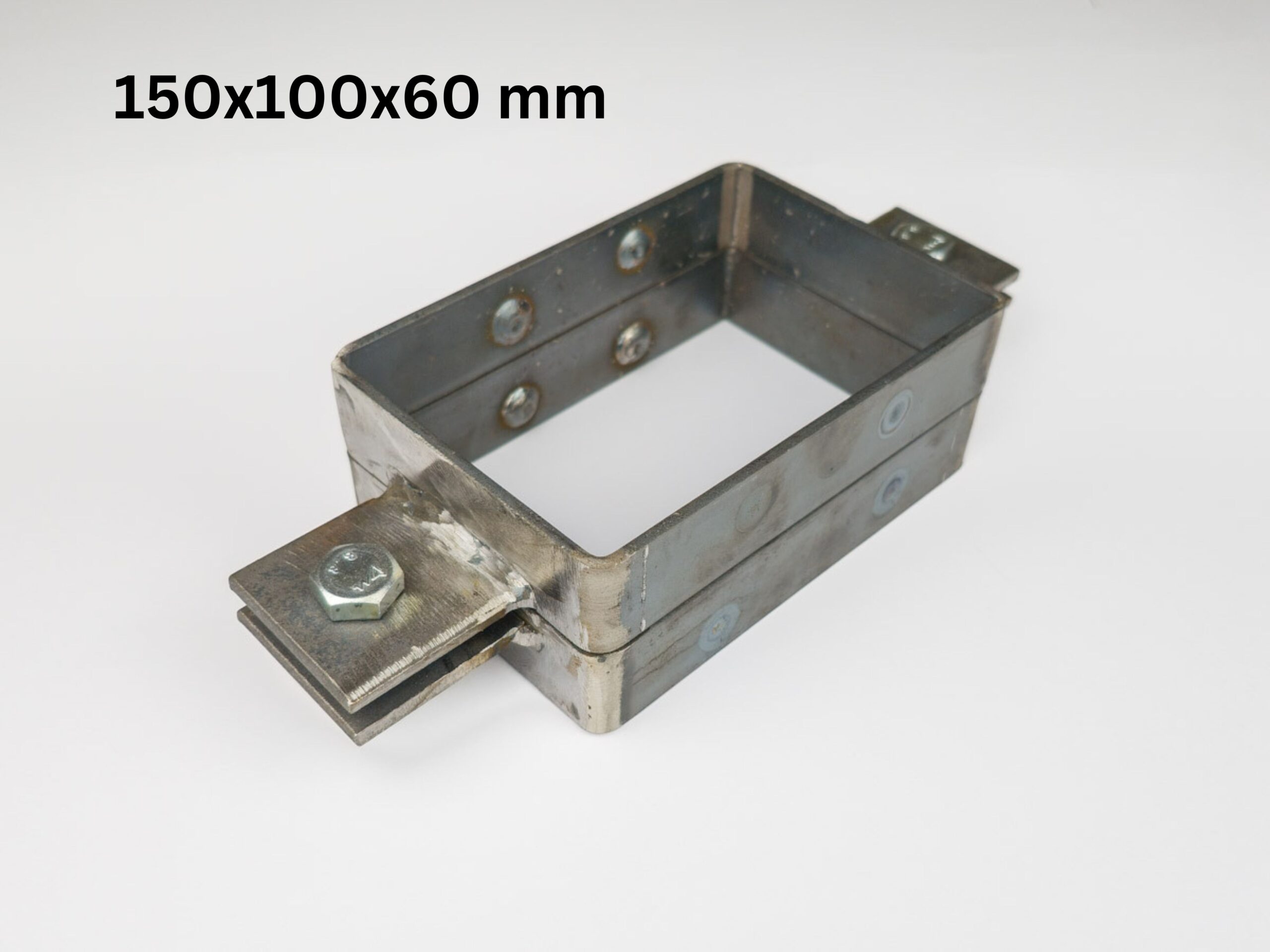

150x100x60 mm, approx. 1.3 kg

For the sizes of our flasks, you should plan for the following quantities of oil sand:

350x250x200 mm: approx. 26.2 kg oil sand required
300x200x160 mm: approx. 14.5 kg oil sand required
200x100x100 mm: approx. 2.8 kg oil sand required
250x100x60 mm: approx. 2.3 kg oil sand required
150x100x60 mm: approx. 1.4 kg oil sand required

We can produce other sizes upon request. The dimensions always refer to the assembled complete flask, i.e., cope and drag.

The production of the flasks takes place exclusively in Germany.

On the right, you will find the guide for oil sand molding available for download.

Additional information

Information on the base price:
Since these are tiered prices, the base price corresponds to the total price for the respective weight/dimension.
